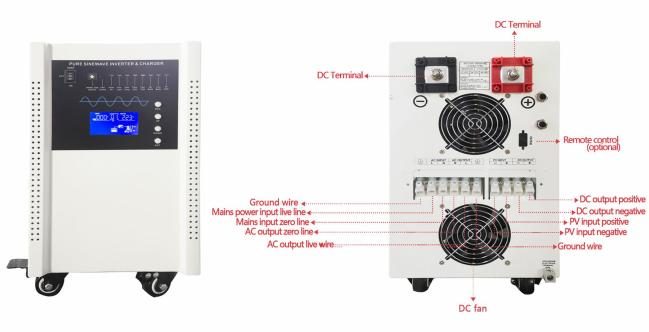

PRODUCT DESCRIPTION:

HET HV solar off-grid vertical inverter series products areBuilt-in solar MPPT/PWM controller (optional), and complementary with mains Inverter control all-in-one machine, users only need external solar modules and batteries,It can form an off-grid power generation system;The user can set the sleep mode according to the actual situation, The solar energy priority mode is a multi-functional and intelligent inverter control all-in-one machine.

PRODUCT FEATURES:

1. Pure sine output is suitable for various loads. It can be used with mixed power supply such as mains/diesel generators Automatic switching of

2. 5 functions: mains bypass, mains charging, solar charging, inverter, UPS

3. Built-in MPPT/solar charge controller (controller power 40/60A/80A/120A optional)

4. Contains relay switching and AC/DC circuit breaker, with multiple protections such as undervoltage /overvoltage/short circuit/overload/over temperature

5. DIP switch selection: battery undervoltage point, input AC range, energy saving mode, output frequency, priority mode

6. The efficiency is 3~5% higher than the ordinary power frequency series, and the self-consumption is reduced by 30%~50%

7. Professional off-grid solar system solutions (optional)

8. Remote control RJ11/RJ45 and RS232/485 interface remote control panel (optional)

9. Pure sine wave series inverters are suitable for renewable energy systems, solar photovoltaic systems, vehicles, ships,Marine and emergency applications.

HV-pv Series parameter table

Electrical Specifications
	Model HV-PV	1.0KW	2.0KW	3.0KW	4.0KW	5.0KW	6.0KW	8.0KW	10.0KW	12.0KW
Inverter output	rated power	1.0KW	2.0KW	3.0KW	4.0KW	5.0KW	6.0KW	8.0KW	10.0KW	12.0KW
	Peak power (2 seconds)	3.0KW	6.0KW	9.0KW	12.0KW	15.0KW	18.0KW	24.0KW	30.0KW	36.0KW
	Output voltage waveform	Pure sine wave (mains or generator)
	Rated efficiency	>88%(Peak)
	Online mode efficiency	>95%
	Power factor	0.9-1.0
	Rated output voltage	100-110-120Vac / 220-230-240Vac
	Output frequency	50Hz ± 0.3Hz/60Hz ± 0.3Hz
	Short circuit	Yes, protection after 1 second short circuit

	protection
	Typical switching time	10ms (maximum)
	Total harmonic distortion	< 10%
DC input	Rated input voltage	12.0Vdc / 24.0Vdc / 48.0Vdc			24.0Vdc / 48.0Vdc			48.0Vdc/60.0Vdc/72.0Vdc
	Minimum starting voltage	10.0Vdc / 10.5Vdc for 12Vdc Mode			*2 for 24Vdc,*4 for 48Vdc*5 60VdcVdc *6 72Vdc
	Low battery voltage alarm	10.5Vdc / 11.0Vdc for 12Vdc Mode
	Low voltage cut out	10.0Vdc / 10.5Vdc for 12Vdc Mode
	High voltage cutting	16.0Vdc for 12Vdc Mode
	Low voltage recovery	15.5Vdc for 12Vdc Mode
Charge controll er	The output voltage	Depends on battery type
	Charging circuit breaker specifications	15A	20A	30A	40A	40A	40A	50A	80A	80A
	Maximum charging current	See detailed table
	Starting voltage	10.5-15.7Vdc for 12Vdc Mode			*2 for 24Vdc, *4 for 48Vdc;*6 72Vdc
	Overcharge protection shutdown point	more than the 15.8Vdc for 12Vdc Mode
protect	Rated input voltage	100-110-120Vac / 220-230-240Vac
	Maximum input voltage	150VAC For 120Vac LV Mode ；300VAC For 230Vac HV Mode；
	Rated input frequency	50Hz or 60Hz
	Low frequency cut out	47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
	High frequency cut out	55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
	Overload	yes

	protection
	Output short circuit protection	yes
	Maximum bypass current	30Amp			40Amp			80Amp
Solar Control ler parame ter	Solar system voltage	MPPT12V/24V/36V/48V automatic recognition
	Open circuit voltage of photovoltaic panel	18～150Vdc@ 12V 35～150Vdc@24V 60～150Vdc@48V
	Rated charging current	30A-120A (optional)
	Charging efficiency	97.6%
	Rechargeable battery type	Valve-regulated lead-acid battery Gel battery Lithium battery
	charging method	Four-stage charging: constant current charge, constant voltage charge, float charge, equal charge
	safety protection	Solar panel short circuit protection, overcharge protection, over discharge protection, overload protection
Mecha nical parame ters	Install	Wall mount
	Inverter size (length * width * height)	380*215* 360mm	490*215*410mm		490*215*410mm			480*300*715mm
	Inverter shell size (length * width * height)	—	—		—			550*320*820mm
	Net weight of inverter with solar rear KG	—	—	—	—	—	—	63	65.5	66.5
	Package includes solar rear unit net weight KG	—	—	—	—	—	—	71.5	74	75
	show	Status LEDs / Status LEDs+LCD
	Standard warranty	2 year
