PRODUCT DESCRIPTION:
HC series pure sine wave inverter, a multifunctional inverter
integrating charger and automatic AC transferswitch, the highest
conversion rate is 88%.Features: power factor correction,
multi-stage charging only and pure sine wave output, and
withunprecedented peak power to meetThe power demand of the
inductive load does not endanger the equipment itself. For
conventional machines, when the mains AC power is cut off (the fire
exceeds theacceptable range),When the transfer relay is
disconnected, the loadcan be automatically transferred to the
output of the inverter. Once the AC powerreturns, the relay is
connected. The load can be automatically re-driven by the mains AC

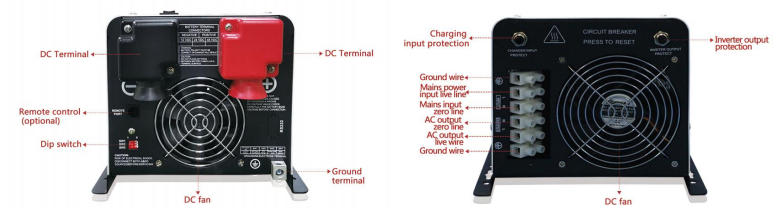

PRODUCT FEATURES:
1. Contains four functions of mains bypass, mains charging,
inverter,UPS, fully automatic switching
2. The efficiency is 3~5% higher than the ordinary power frequency
series, and the self-consumption is reduced by 30~50%
3. DIP switch selection: battery undervoltage point, input AC
range, energysaving mode, priority mode
4. Remote communication interface RJ11/RJ45/RS232/485 remote
control panel (optional)
5. Support PC software monitoring, support WIFI 4G module expansion
to realize app cloud monitoring (optional)
6. Pure sine wave output, input and output completely isolated
design
7. Contains AC four-stage charging mode, and the charging current
is automatically adjusted
8. It can be matched with commercial power, diesel engine power
generationand other mixed power supply
9. Can withstand 3 times the rated power start, excellent load
capacity
10. LED display working status, LCD remote display operating
parameters
11. Undervoltage/overvoltage/short circuit/overload/over
temperature protection
12. Pure sine wave series inverters are suitable for renewable
energy systems, utilities, RVs,Marine and emergency applications.
| Parameter |
| MODEL(HC) | 1kw | 1.5kw | 2kw | 3kw | 4kw | 5KW | 6KW |
| Continuous Output Power (W) | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Rated input voltage | 12VDC/24VDC/48VDC | 12VDC/24VDC/48VDC | 24VDC/48VDC |
| Mains mode specifications: |
| Input voltage waveform | Sine wave (mains or generator) |
| Rated input voltage | 100V/ 110V/ 120V/220V/230V/240Vac |
Low voltage shutdown point | 92/ 184Vac±4% |
| Low pressure recovery point | 97/ 194Vac ±4% |
High voltage shutdown point | 127/253Vac±4% |
| High pressure recovery point | 121/243Vac±4% |
Maximum AC input voltage | 135/270V rms |
| Rated input frequency | 50Hz/ 60Hz (automatic detection) |
| Low voltage recovery point frequency | 40.5+0.3Hz ; |
| Low voltage cut-off point frequency | 40+0.3Hz; |
| High voltage recovery point frequency | 69.5+0.3Hz; |
| High voltage cut-off point frequency | 70+0.3Hz ; |
| Output voltage waveform | Consistent with the input voltage waveform |
| Overload protection | Circuit breaker start |
| Short circuit protection | Circuit breaker start |
| Power Efficiency | >95% |
| Conversion current | 30A |
| Conversion time (Ac to Dc) | 10ms |
| Bypass switching current | Yes |
| Bypass maximum load current | 30A |
| Output voltage waveform | Sine wave |
| Power factor | 0~1.0 |
| Rated output voltage (V) | 120/230Vac |
| Rated output frequency (Hz) | 60/50Hz ± 0.3Hz |
| Automatic tracking main frequency (Hz) | Yes (from the first connection) |
| Output voltage range | ±2% rms |
| efficient | >80% |
| Overload protection (SMPS load) | (110%<load<125%) ±10%: disconnect the output voltage after 15
minutes (125%<load <150%) ±10%: disconnect the output voltage after
10 seconds Load >150% ±10%: Disconnect the output voltage after 20 seconds |
| Peak capacity( 10s) | 3000VA | 4500VA | 6000VA | 9000VA | 1200VA | 15000VA | 18000VA |
| start the motor | 1HP | 1.5HP | 2HP | 3HP | 4HP | 5HP | 6HP |
| Short circuit protection | Current limit (power off after 10s) |
| Circuit breaker size | 15A | 20A | 30A | 40A |
| Rated DC input voltage | 12V / 24V/48V |
Minimum DC terminal voltage | 10V/20V/40V |
| Undervoltage warning | 10.5Vdc ± 0.3Vdc (12V power supply) |
| DC input voltage is too low, automatic power off | 10.0Vdc ± 0.3Vdc(12V power supply) |
| Input overvoltagewarning and power failure | 16Vdc ± 0.3Vdc (12Vpower supply) |
| Input overvoltage recovery | 15.5Vdc ± 0.3Vdc(12V power supply) |
| Power saving | load ≦2W |
| Inverter dimensions | 360*185* 180mm | 420*185* 180mm | 597* 195* 190mm |
| (Length*width*height) | | | |
Packing size (length*width*height) | 520*315*305 | 580*315*305mm | 760*325*310mm |
| Inverter weight | 13.5KG | 14KG | 17KG | 21KG | 27KG | 29.5KG | 30.5KG |
| Packing operating weight | 15.5KG | 15.5KG | 19KG | 23.5KG | 29.5KG | 31.5KG | 32.5KG |
| Standard warranty | 2 year |
If the product model specification changes without notice
