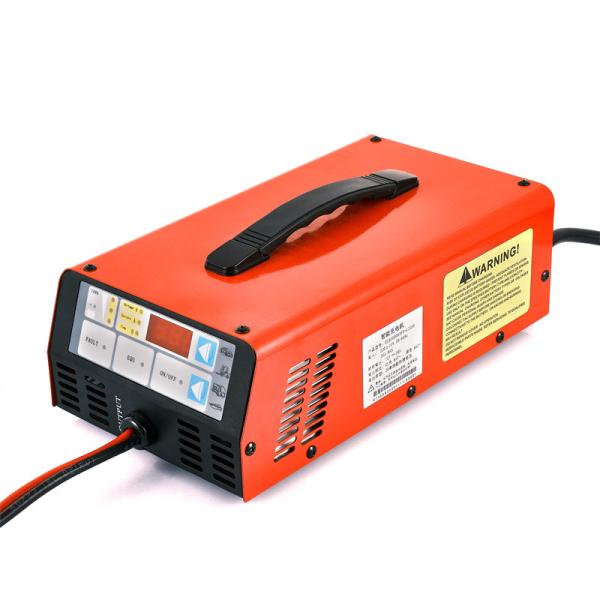

Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36

Shenzhen Yima Power Supply Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36 from wholesalers

    Buy cheap Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36 from wholesalers
    • Buy cheap Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36 from wholesalers
    • Buy cheap Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36 from wholesalers
    • Buy cheap Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36 from wholesalers
    • Buy cheap Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36 from wholesalers
    • Buy cheap Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36 from wholesalers

    Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36

    Ask Lasest Price
    Brand Name : Yima
    Certification : CE ROHS IP66
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100000 Piece/Pieces per Month
    • Product Details
    • Company Profile

    Eco Friendly Lipo Battery Chargers 80A 36v Lithium Battery Charger Model E36

    Technical Parameters:
    1. AC Input Voltage: 185V–265V, 380V
    2. AC Input Frequency: 40–70Hz
    3. AC Cable Length: 1.5m
    4. DC Cable Length: 1.5m
    5. Max Efficiency: ≥93%
    6. Operating Temperature: -30–+65℃
    7. Storage Temperature: -40–+95℃
    8. Noise: ≤40dB
    9. Size: 320*176*110mm
    10. Weight: 5.5kg
    11. Shell Material: Red iron shell

    Carton Packaging
    Qty/ctn: 1pc
    N.W.: 8KG
    G.W.: 9KG
    Meas.: 40*26*22cm


    ModelInputNominal VoltageMax Charging VoltageMax Charging CurrentMax Output Power

    Optional Communication

    &

    Auxiliary Power

    ModelEXW Price (USD/pc)Protection
    Lead Acid BatteryLiFePo4 BatteryLipo Battery110Vac220Vac

    E36


    Iron

    220V 32A

    380V 16A


    185-265Vac

    380Vac

    12V14.4V (6s)14.6V (4s)16.8V (4s)/60A3600W@220Vac

    CAN, RS485

    Power: 12V 5A

    12V 100A

    24V 100A

    36V 80A

    48V 60A

    60V 50A

    72V 42A

    84V 35A

    96V 32A

    1-10 $478

    10-100 $429

    100-300 $409

    300-500 $388

    1. IPX4

    2. OVP

    3. OTP

    4. OEP

    5. OCP

    6. Short Circuit Protection

    7. Automatic shutdown when fully charged

    24V29.4V (12s)29.2V (8s)29.4V (7s)/60A
    36V44V (18s)43.8V (12s)42V (10s)/60A
    48V58.8V (24s)58.4V (16s)58.8V (14s)/60A
    60V73.5V (30s)73V (20s)67.2V (16s)/50A
    72V88.2V (36s)87.6V (24s)84V (20s)/40A
    84V102.9V (42s)/100.8V (24s)/30A
    96V115.2V (48s)///30A

    Product List

    ModelMax PowerShell MaterialSize (mm)InputMax OutputMain Models
    VoltageCurrent(Rated Voltage, Current)
    E3300WAluminium Profile188*90*53110V/3A 220V/1.5A68V20A12V/20A, 24V/10A, 36V/7A, 48V/5A
    E6600WAluminium Profile205*90*53110V/6A 220V/3A102V20A24V/20A, 36V/15A, 48V/12A, 60V/10A, 72V/7A
    E8800WAluminium Casting183*105*65110V/9A 220V/4.5A102V30A12V/30A, 24V/30A, 36V/20A, 48V/18A, 60V/15A, 72V/12A, 84V/10A, 96V/8A
    E9800WAluminium Profile205*105*68110V/9A 220V/4.5A102V30A12V/30A, 24V/30A, 36V/20A, 48V/18A, 60V/15A, 72V/12A, 84V/10A, 96V/8A
    E151350WAluminium Casting282*124*72110V/16A 220V/8A135V30A24V/30A, 36V/30A, 48V/25A, 60V/20A, 72V/12A, 84V/10A, 96V/8A
    E222000WAluminium Casting282*168*95110V/24A 220V/12A135V40A24V/40A, 36V/40A, 48V/30A, 60V/30A, 72V/25A, 84V/20A, 96V/18A
    E252200WIron293*152*100220V/15A135V50A12V/50A, 24V/50A, 36V/45A, 48V/40A, 60V/35A, 72V/25A, 84V/20A, 96V/18A
    E333300WAluminium Casting294*210*111110V/32A 220V/16A135V40A24V/45A, 36V/45A, 48V/45A, 60V/45A, 72V/40A, 84V/35A, 96V/30A
    E363600WIron320*176*110220V/32A 380V/16A135V100A12V/100A, 24V/100A, 36V/80A, 48V/60A, 60V/50A, 72V/42A, 84V/35A, 96V/32A
    E665500WIron325*148*290

    220V/40A

    380V/20A

    135V100A36V/100A, 48V/100A, 60V/90A, 72V/80A, 84V/70A, 96V/60A

    Why Choose Us
    1.Factory directly store : 12 years battery packing experience , from 24V, 36V 48V 52V 60V 72V to DIY Voltage/Size , all we can make it for you, Mature production technology , and filter the high consistency cells , we know how to make a reliable and safe battery for customers .

    2.Battery quality :There are Grade A B C level battery , We only use grade A cell for battery , safest packing process, never use cheap/false cells with false capacity/low price to cheat buyers. Price = quality = Customer's service , you want to get a long range/long life/safe battery for your bike , or want to get a unkowned cells battery back your home?

    3. After-sale: We provide 1 year warranty, when you buy a battery cannot reach to seller, this won't happen to us.

    4.Shipping method and time from China order:This is battery, cannot ship by DHL/UPS/Fedex/DPD directly, it can only ship by train or by air , there would be 30-40 days(train)/15days(air) no update for the tracking , once it arrive EU/USA/CA/AU , finished the customs clearance , then UPS/DPD can pick up the item ,until then the tracking will have update. Just trust us .
